18 40 040 Removing and installing/replacing the exhaust manifold (N14, N18)

Special tools required:

17 2 051

WARNING: Risk of burning!
This repair work may only be carried out on an exhaust system which has cooled down.

IMPORTANT: Gaiter and charge air hoses with clamp fastenings must be installed dry and free from grease!
Sealing surfaces and connecting branches must be dry and free from grease.
If gaiter and charge air hoses with clamp fastenings are not installed dry and free from grease, this may result in exhaust turbocharger failure!

Necessary preliminary tasks:

Drain COOLANT .
Remove COOLANT EXPANSION TANK .
Remove the CATALYTIC CONVERTER .

Release the clamp and detach the charge air duct (1).

Release clamps (2) and pull off gaiter (3).

Remove intake pipe (4).

Installation note:

Install gaiter (3) and charge-air duct (1) dry and free from grease.

Connecting branch on exhaust turbocharger must be dry and free from grease.

Fig 1: Identifying Charge-Air Duct, Intake Pipe, Gaiter And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Release the spring strap using special tool 17 2 051 and pull off the coolant hose (1).

Fig 2: Releasing Spring Strap Using Special Tool (17 2 051)

Courtesy of BMW OF NORTH AMERICA, INC.

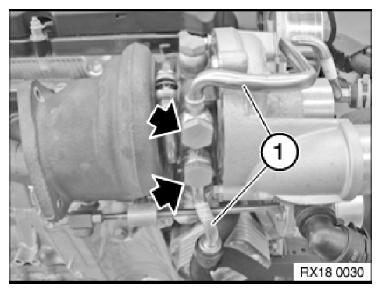

Release screws and detach lines (1).

Installation note:

Replace gaskets.

Tightening torque N14 11 65 8AZ .

Tightening torque N18 11 65 9AZ .

Fig 3: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off hose (1).

Unlock connector (2) and remove.

Release screw (3).

Release spring strap with special tool 17 2 051 . Pull off line (4) and remove.

Fig 4: Releasing Spring Strap With Special Tool (17 2 051)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and detach line (2).

Installation note:

Replace gaskets.

Tightening torque: 11 65 4AZ (N14) or 11 65 4AZ (N18).

Release screw (3) and detach line (4).

Installation note:

Replace sealing ring.

Tightening torque 11 65 5AZ .

Fig 5: Identifying Lines And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

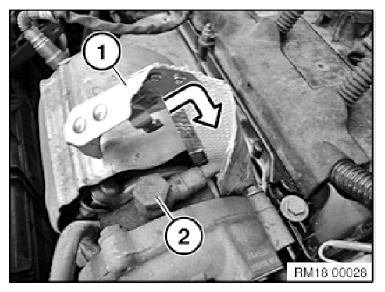

When fitting engine oil pipe and banjo bolt, install thermal protection (1).

Wrap thermal protection around engine oil pipe.

Check banjo bolt (2) and engine oil pipe for blockage. Replace blocked banjo bolt and engine oil pipe.

Fig 6: Installing Thermal Protection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure that thermal protection clamp (1) engages correctly.

Fig 7: Identifying Thermal Protection Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque: 11 65 3AZ (N14) or 11 65 3AZ (N18).

Release screw (2) and remove holder (3).

Tightening torque: 11 65 6AZ (N14) or 11 65 6AZ (N18).

Fig 8: Identifying Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts and remove exhaust manifold (1).

Installation note:

Replace gasket and nuts.
Clean sealing surfaces.
Apply a thin coat of copper paste to thread.
Tightening torque 18 40 1AZ .

Fig 9: Locating Exhaust Manifold Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts and remove exhaust turbocharger (1) from exhaust manifold (2).

Observe important information during removal or replacement of the exhaust turbocharger. See 11 65 020 REMOVING AND INSTALLING/REPLACING EXHAUST TURBOCHARGER (N14) or 11 65 020 REMOVING AND INSTALLING/REPLACING EXHAUST TURBOCHARGER (N18) .

Installation note:

Replace gasket and nuts.
Clean sealing surfaces.
Apply a thin coat of copper paste to thread.
Tightening torque: 11 65 1AZ (N14) or 11 65 1AZ (N18).

Fig 10: Identifying Turbocharger, Exhaust Manifold, And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Assemble engine.

Top up COOLANT .

Check engine oil level.

Clear DME fault memory.
