00 58 298 Retrofitting the crankcase ventilation (N16) (cold-climate version only)

Necessary preliminary work:

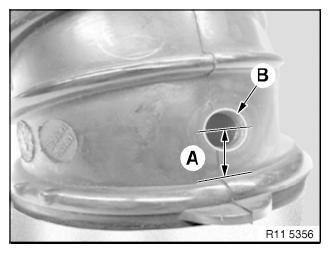

Dimension A = 12 mm

Dimension B = Ø10 mm

Drill hole Ø 10 mm.

Fig 1: Identifying Drilling Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

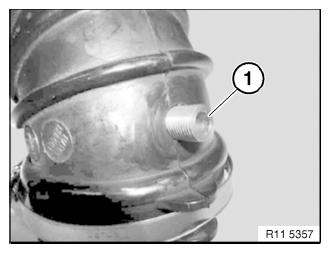

Insert banjo bolt (1) through the hole from the inside.

Fig 2: Identifying Banjo Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

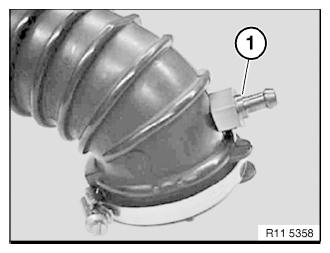

Screw connector (1) onto the banjo bolt.

Fig 3: Identifying Connector

Courtesy of BMW OF NORTH AMERICA, INC.

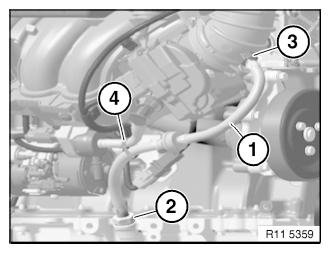

Screw tank ventilation line (1) onto crankcase with connector (2).

Tightening torque 11 11 8AZ .

Insert line (1) on connector on clean air pipe and secure with hose clamp (3).

Secure line (1) with cable strap (4).

Fig 4: Identifying Ventilation Line, Connector, Hose Clamp, And Cable Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Reassemble the vehicle.
