Drive Axle Shaft (Right): Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Remove wheel. Remove wheel speed sensor. See WHEEL SPEED SENSOR . If necessary, remove fan for power steering. See POWER STEERING FAN . Drain transmission oil. Release collar nut while pressing brake pedal to floor. See Figure . Remove screws and remove brake caliper. See Figure . Tie back brake caliper. Remove nut and detach tie rod end with Special Tool (323 090). See Figure . Release nut and use Special Tool (321190) to detach control arm from steering knuckle. See Figure . Remove bolts. See Fig 1 . Remove circlip and detach inner drive shaft joint from transmission. See Figure . Remove screw and remove steering knuckle from spring strut. See Figure . Support steering knuckle. Lift out drive shaft with steering knuckle and remove drive shaft from steering knuckle.

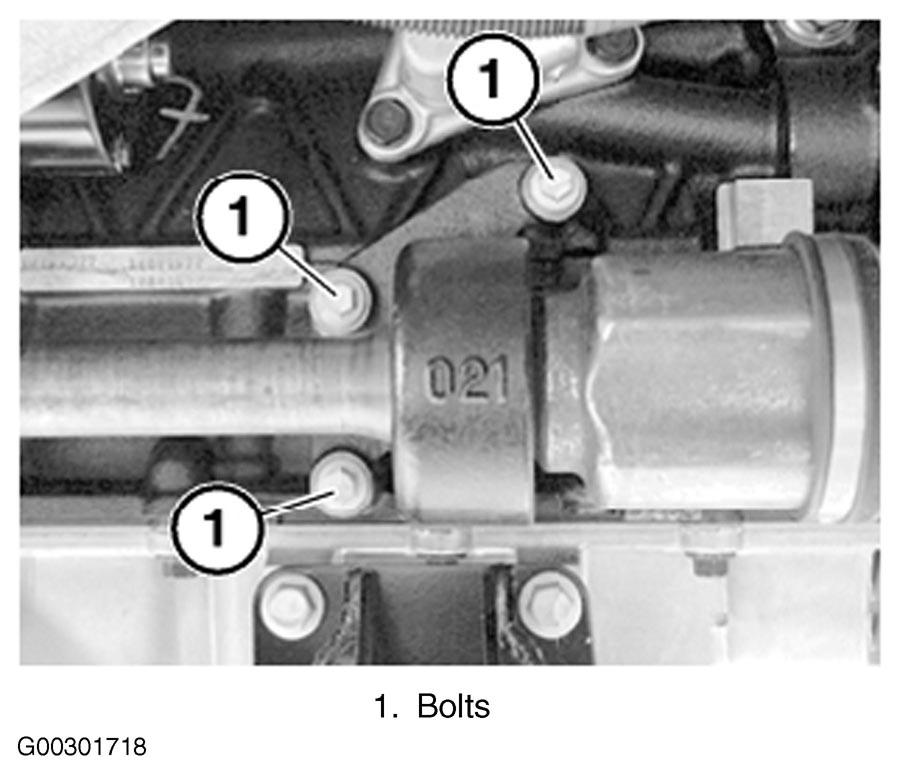

Fig 1: Removing Bolts

Courtesy of BMW OF NORTH AMERICA, INC.
