315250 Fixture

NOTE: (universal axle take-up) For accommodating all front and rear axles when removing and installing.

SI number: 01 24 06 (309)

Consisting of:

1 = 0495817 Basic body

NOTE: (Basic body) No longer available separately, only via special tool set 31 5 250 (83 30 0 495 567)

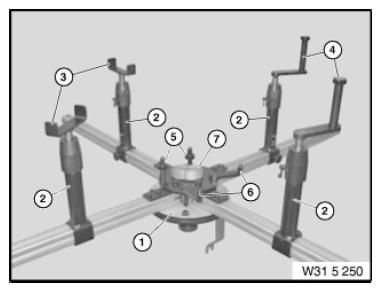

Fig 1: Identifying Fixture (315250)

Courtesy of BMW OF NORTH AMERICA, INC.

2 = 0495818 Support

NOTE: (Telescope supports) 4 pieces, no longer available separately, only via special tool set 31 5 250 (83 30 0 495 567)

3 = 0495819 Adapter

NOTE: (take-up adapter U-section (2 x))

4 = 0495820 Adapter

NOTE: (take-up adapter (2 x))

5 = 0495821 Adapter

NOTE: (take-up adapter for bore holes (2 x))

6 = 0495822 Adapter

NOTE: (take-up adapter for bore holes (2 x))

7 = 0495824 Belt

NOTE: (Tensioning strap)
