Removal & Installation

Remove upper section of steering column trim. See UPPER SECTION OF STEERING COLUMN TRIM  . Remove lower section of steering column trim. See LOWER SECTION OF STEERING COLUMN TRIM  . Detach steering spindle lower section from steering column. See LOWER SECTION OF STEERING SPINDLE  . Remove steering wheel. See STEERING WHEEL  .

Disconnect plug connection for collector ring and ring antenna. When replacing steering column, replace screws (1). Remove collector ring unit. See Fig 1 .

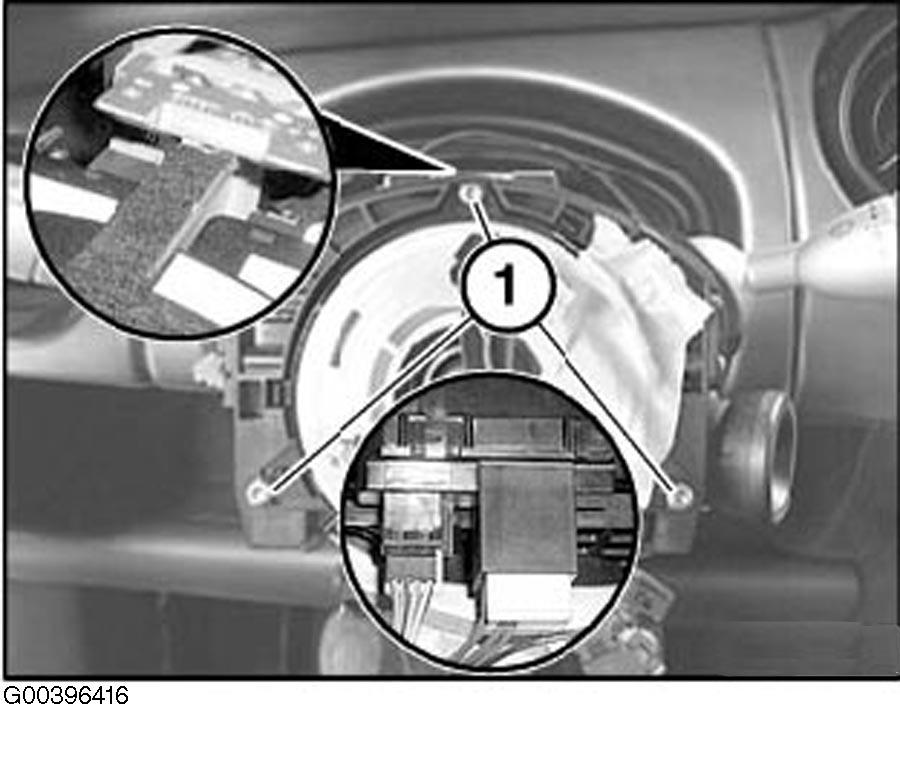

Fig 1: Removing Collector Ring Unit

Courtesy of BMW OF NORTH AMERICA, INC.

On vehicles with CVT, detach cable of selector lever/ignition switch interlock. During installation, lock must engage in position. See Fig 2 .

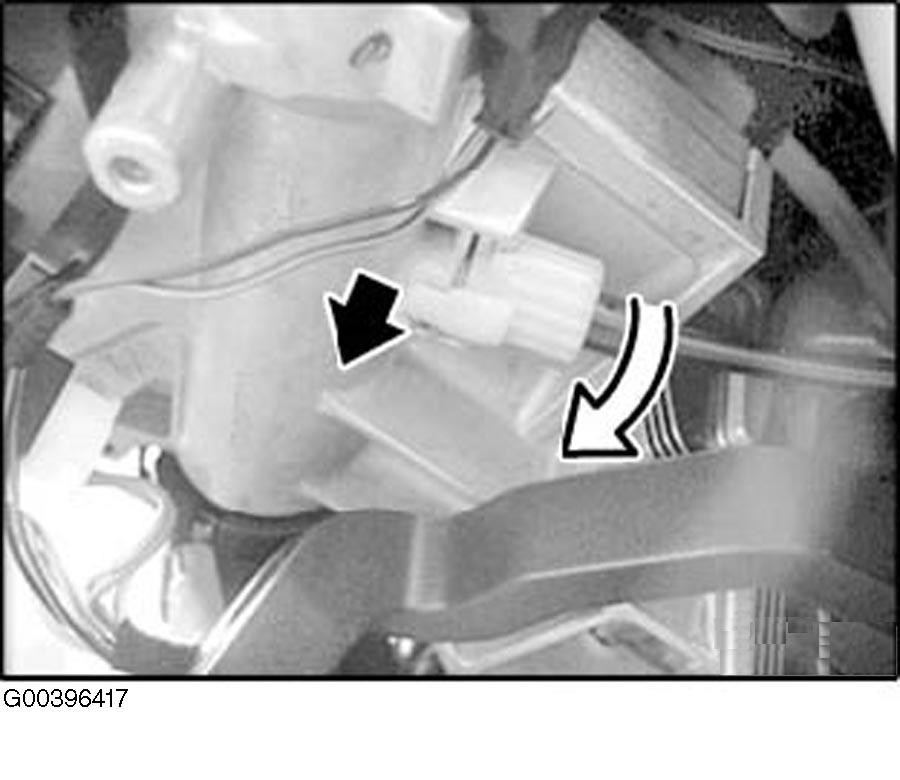

Fig 2: Ensuring Lock Engages In Position

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1). During installation, replace screws. Observe the following when replacing the steering column: modify ignition start switch, lock cylinder, and steering angle sensor. Stick on felt strips. See Fig 3 .

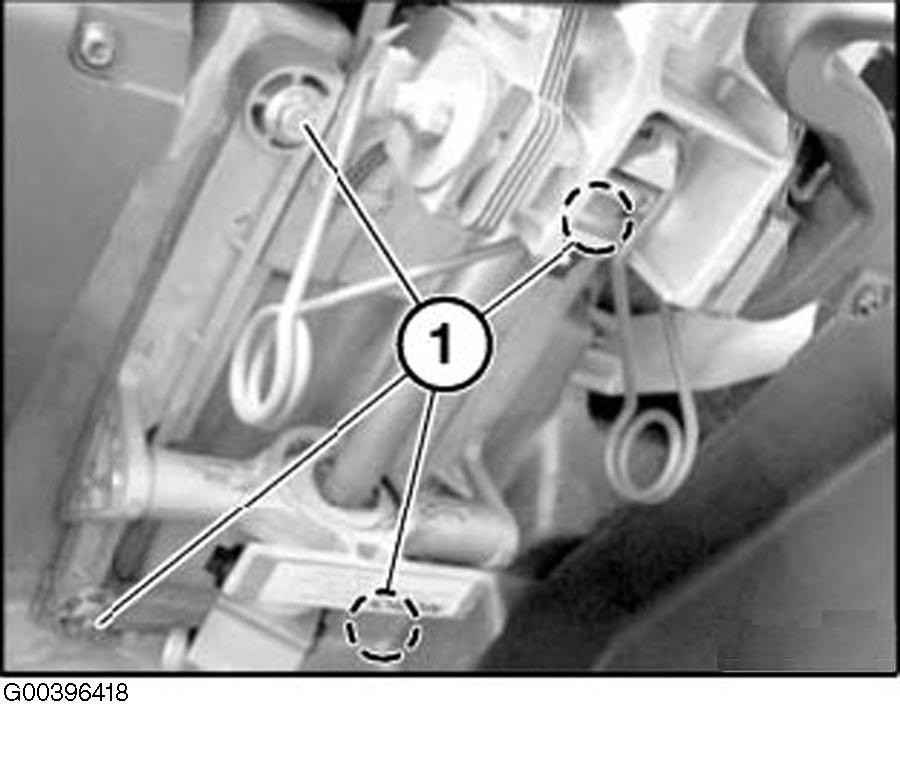

Fig 3: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

When installing steering column, make sure that steering column (1) is located above lug (2). Steering column (1) must rest uniformly on instrument panel carrier. See Fig 4 .

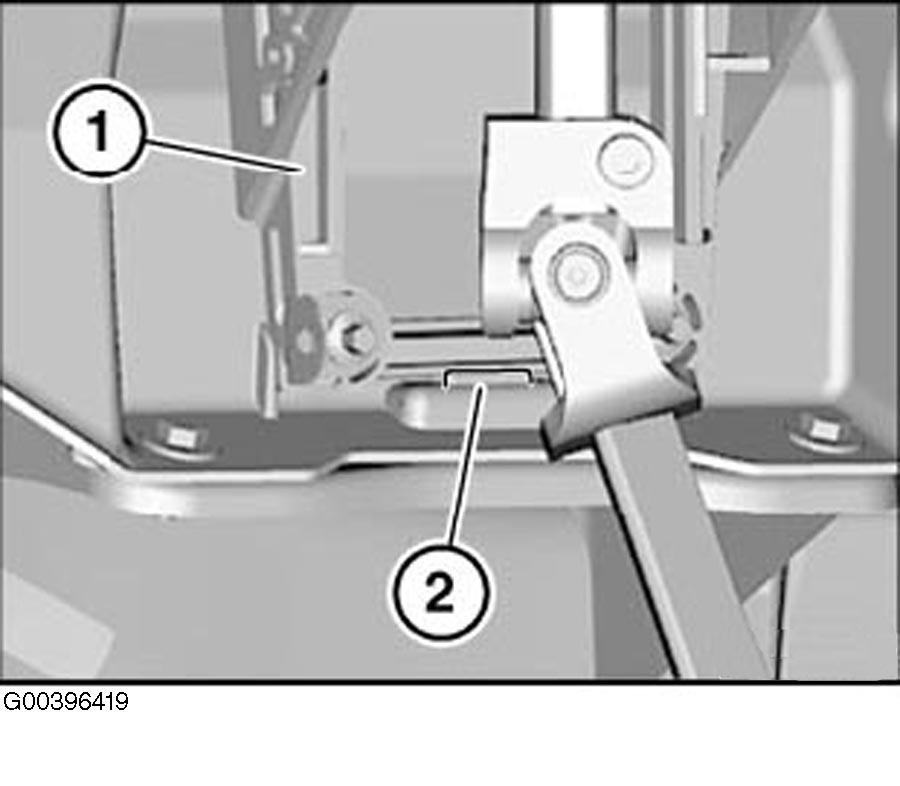

Fig 4: Installing Steering Column

Courtesy of BMW OF NORTH AMERICA, INC.

A felt strip measuring 15x125 mm must be stuck onto the new steering column (1) in area (2). See Fig 5 .

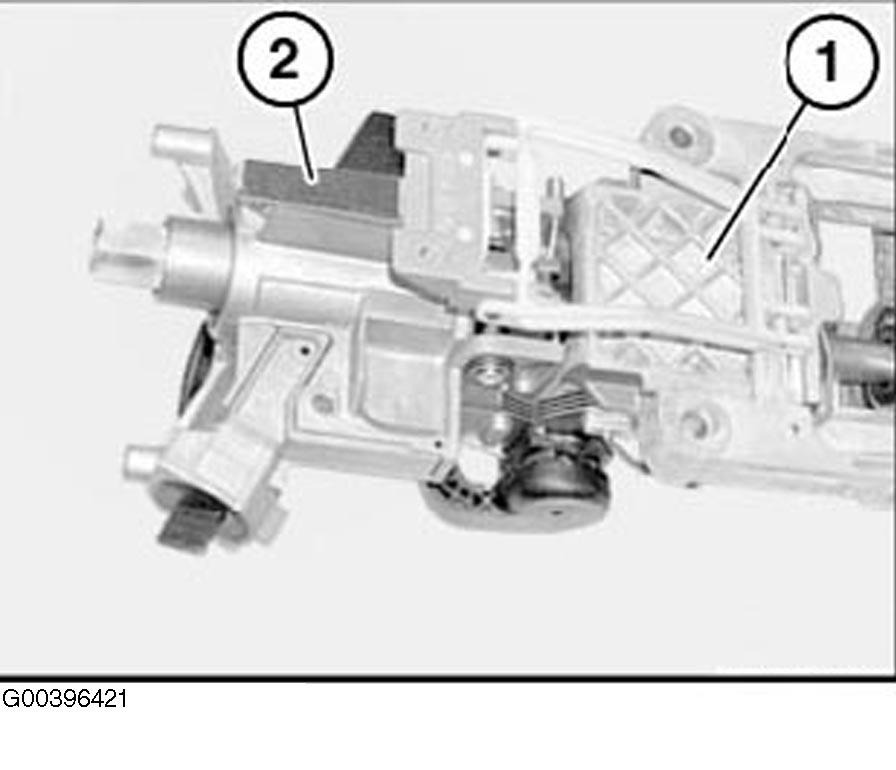

Fig 5: Installing Felt Strips

Courtesy of BMW OF NORTH AMERICA, INC.

A felt strip measuring 15x50 mm must be stuck onto the new steering column (1) in area (2). Felt strips must be ordered from BMW and cut to size. See Fig 6 .

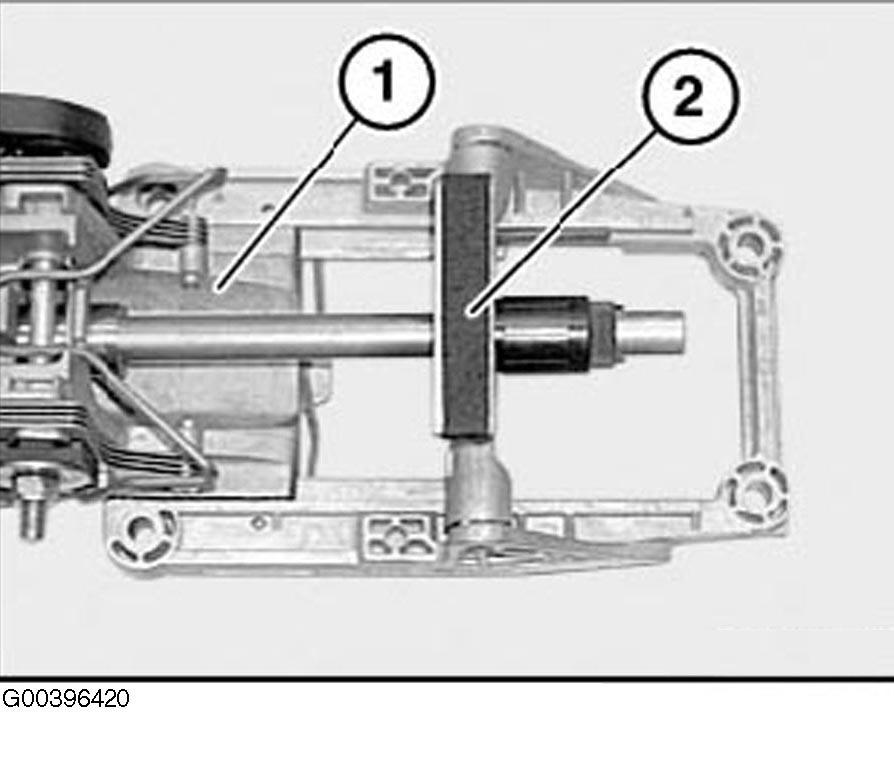

Fig 6: Installing Felt Strip On New Steering Column
