315220 Fixture

Mechanical tool

NOTE: For securing wheel hub when removing and installing spring strut.

Storage Location: A19

SI number: 01 23 05 (224)

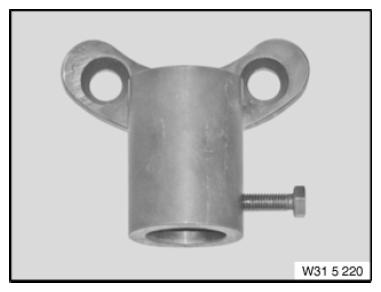

Fig 1: Identifying Fixture (315220)

Courtesy of BMW OF NORTH AMERICA, INC.
