312310 Extractor

Minimum set: Mechanical tools AM

NOTE: For pressing track rod off wheel carrier.

Storage Location: B86

SI number: 01 23 06 (308)

Consisting of:

1 = 0495800 Screw

NOTE: (Pressure bolt) Can only be ordered as part of complete special tool 31 2 310 (0 495 799)

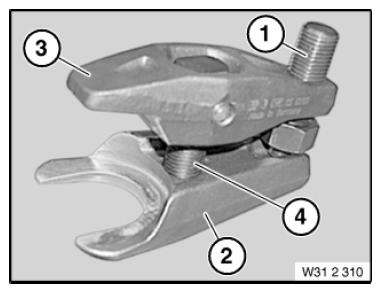

Fig 1: Identifying Extractor (312310)

Courtesy of BMW OF NORTH AMERICA, INC.

2 = 0495801 Shaped part

NOTE: (Shaped part) Can only be ordered as part of complete special tool 31 2 310 (0 495 799)

3 = 0495802 Shaped part

NOTE: (Shaped part) Can only be ordered as part of complete special tool 31 2 310 (0 495 799)

4 = 0495803 Spindle

NOTE: (Spindle and cylindrical pin) Can only be ordered as part of complete special tool 31 2 310 (0 495 799)
