12 14 550 Replace the control unit (DME) (N16, N18)

Necessary preliminary work:

IMPORTANT: Follow REMOVING AND INSTALLING ELECTRONIC CONTROL UNITS .
IMPORTANT: It is absolutely essential to read out the fault memory with the MINI diagnosis system and create a fault memory printout.

Switch off ignition.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Replacement:

NOTE:
  • Connect diagnosis system.
  • Read fault memory.
  • Check stored error/fault messages.
  • Rectify fault.
  • Delete fault memory.

Version 1:

Unlock and remove cover (1).

Fig 1: Locating Control Unit Cover
G04796427Courtesy of BMW OF NORTH AMERICA, INC.

Type 2:

Release screw (1) at side.

Unlock clamps and remove cover.

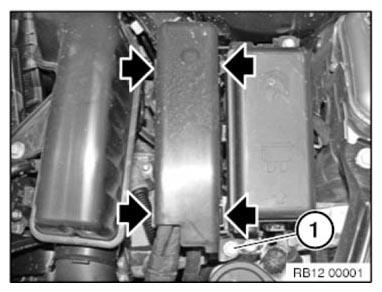

Fig 2: Locating Cover Screw
G06907343Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector (1) and remove.

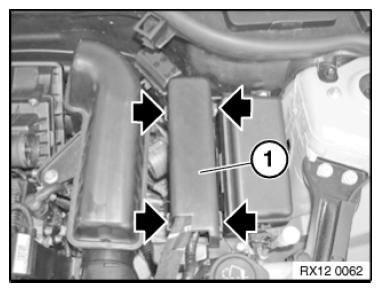

Fig 3: Identifying Control Unit Connectors
G11001523Courtesy of BMW OF NORTH AMERICA, INC.

Press locks in direction of arrow and remove control unit (2) towards top.

Locks are accessible through bore holes (1).

Fig 4: Removing Control Unit
G04796429Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
  • Reassemble the vehicle.
  • Check stored fault messages.
  • Delete fault memory.
