110260 Lifting gear

NOTE: (Lifting gear) For removing and installing the engine.

SI number: 01 23 98 (390)

Consisting of:

1 = 0493454 Lifting gear

NOTE: (Cross-member)

2 = 0493455 Chain

NOTE: (Chain) Version: long

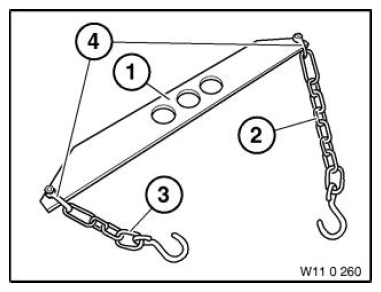

Fig 1: Identifying Lifting Gear (110260)

Courtesy of BMW OF NORTH AMERICA, INC.

3 = 0493456 Chain

NOTE: (Chain) Version: short

4 = 0493457 Shackle

NOTE: (Shackle) 2 x
