51 47 490 Removing and installing/replacing front underbody protection

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Graphic is only an example. Detail deviations depending on model or engine version are possible.

Unscrew all bolts.

Remove underbody protection.

Installation note:

Make sure underbody protection is correctly seated.

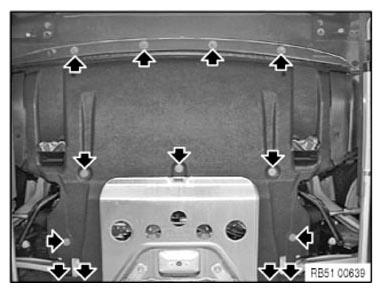

Fig 1: Locating Underbody Protection Bolts
G10045098Courtesy of BMW OF NORTH AMERICA, INC.
