11 31... Service solution - replacing intake camshaft (N20)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 7 110 .
11 4 481 .

WARNING: Risk of injury in event of incorrect use.

IMPORTANT: Improper handling. Risk of damage.

Necessary preliminary tasks:

Removal:

NOTE: Injector shafts shown removed for purposes of clarity.

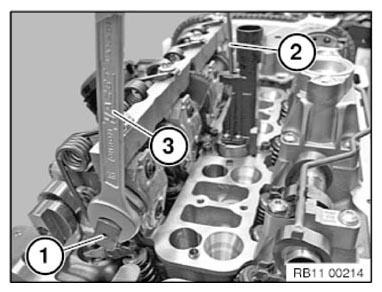

IMPORTANT: Secure eccentric shaft (1) with open-end spanner (3) (risk of return stroke).

Slowly adjust eccentric shaft (1) to minimum lift via servomotor using 4-mm hexagon socket wrench (2) and open-end spanner (3).

Fig 1: Adjusting Eccentric Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

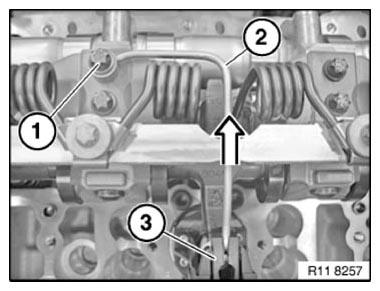

Release bolt (1) on the oil spray nozzle.

Tightening torque 11 37 4AZ .

Unclip oil spray nozzle (2) from the bracket on the actuator drive (3) in direction of arrow.

Fig 2: Unclipping Oil Spray Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

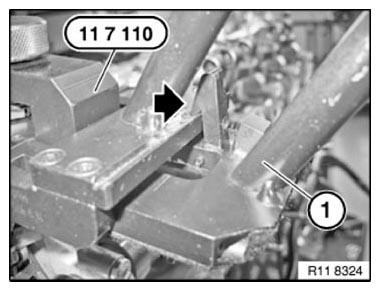

Position special tool 11 7 110 on return spring (1) (see arrows).

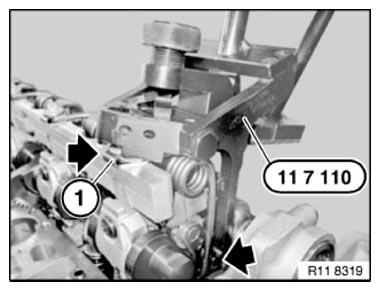

Fig 3: Positioning Special Tool 11 7 110 On Return Spring

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Risk of injury in event of incorrect use.

IMPORTANT: Improper handling. Risk of damage.

Place special tool 11 7 110 flat on cylinder head.

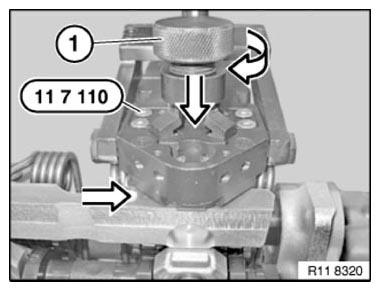

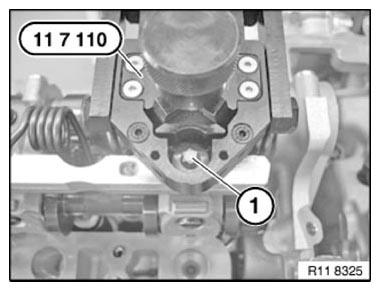

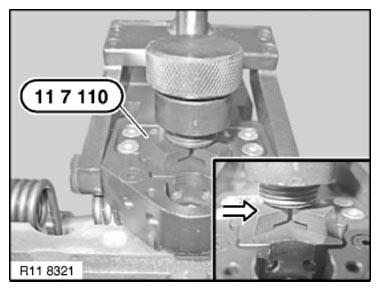

Turn knurled screw (1) in direction of arrow until both clamping levers secure return spring in gate.

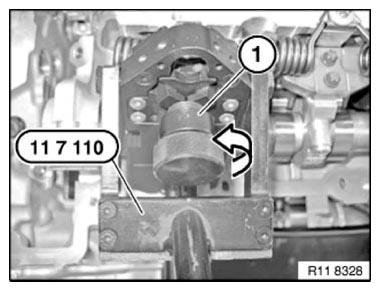

Fig 4: Turning Knurled Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Return spring is correctly preloaded when both clamping levers are parallel to guide block.

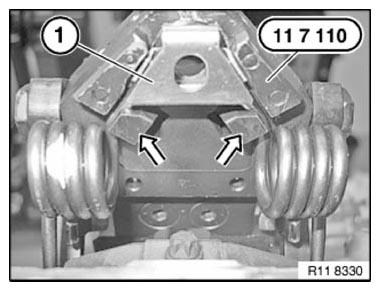

Fig 5: Identifying Clamping Levers Of Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage.

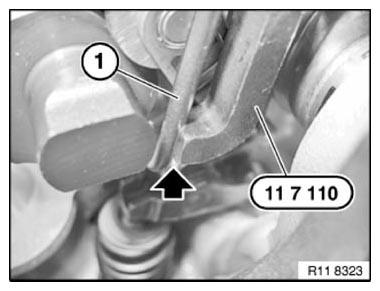

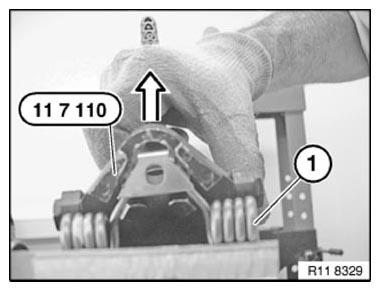

Left and right return springs (1) must be positioned in lateral guide of special tool 11 7 110 .

Fig 6: Identifying Special Tool (11 7 110) And Return Spring

Courtesy of BMW OF NORTH AMERICA, INC.

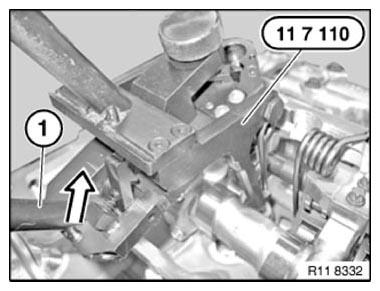

Preload return spring with lever (1) on special tool 11 7 110 in direction of arrow.

Fig 7: Identifying Lever And Special Tool (11 7 110)

Courtesy of BMW OF NORTH AMERICA, INC.

Lock special tool 11 7 110 with catch on lever (1).

IMPORTANT: Screw connection on throttle return spring can only be released with secured special tool 11 7 110 .

Fig 8: Locking Special Tool (11 7 110) With Catch On Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Fig 9: Releasing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Risk of injury in event of incorrect use.
Lever (1) is preloaded.

IMPORTANT: Improper handling. Risk of damage.

Secure lever (1).

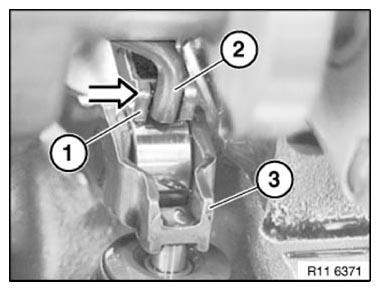

Press back latching hook (2).

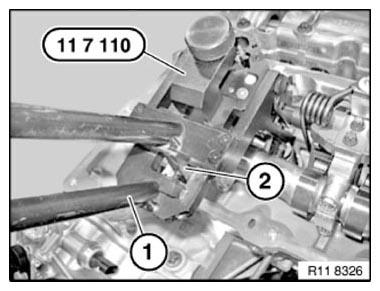

Return spring tension can now be released.

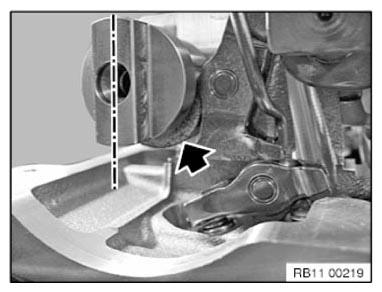

Fig 10: Releasing Return Spring Tension

Courtesy of BMW OF NORTH AMERICA, INC.

Release knurled screw (1) on special tool 11 7 110 in direction of arrow.

Fig 11: Releasing Knurled Screw

Courtesy of BMW OF NORTH AMERICA, INC.

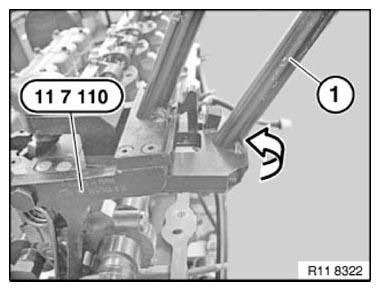

Release special tool 11 7 110 in direction of arrow from return spring (1).

Fig 12: Removing Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Return springs (1) remain on the engine.

Fig 13: Identifying Return Springs

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: All bearing caps are identified with numbers from 1 to 4.

The front bearing cap is a thrust bearing and does not have an identification.

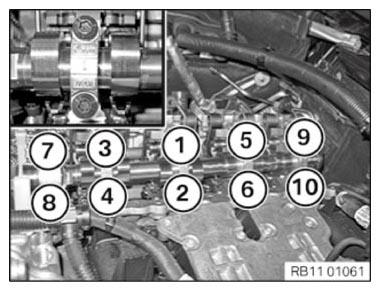

Release screws on all bearing caps (1 to 10).

Set down all bearing caps in a tidy and orderly fashion on special tool 11 4 481 .

Fig 14: Right Intake Camshaft Bearing Cap Bolts Tightening/Loosening Sequence (N20)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not remove intermediate levers (1). Mixing up the intermediate levers (1) will cause the engine to suffer idle-speed fluctuations.

Remove intake camshaft.

Fig 15: Identifying Intermediate Levers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

IMPORTANT: Marks of intake and exhaust camshafts different.
Mixing up the intake and exhaust cams result in engine damage .
A Exhaust camshaft.
E Intake camshaft

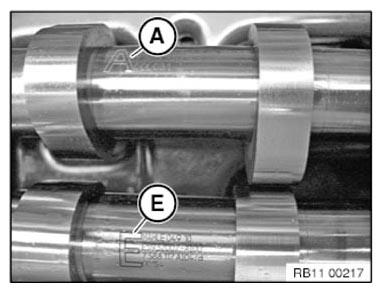

Fig 16: Identifying Exhaust (A) And Intake (E) Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

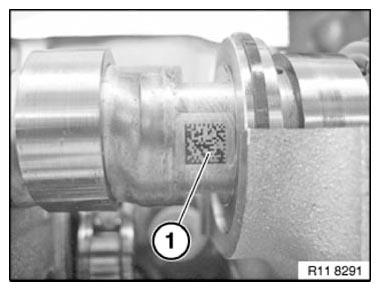

Insert intake camshaft so that data code (1) on mounting flats points upwards.

Fig 17: Locating Camshaft Designation

Courtesy of BMW OF NORTH AMERICA, INC.

Position intake camshaft so that cams point downward at an angle and to the left.

Fig 18: Positioning Intake Camshaft With Cams Pointing Downward At Angle Toward Left

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: All bearing caps are identified with numbers from 1 to 4.

The front bearing cap is a thrust bearing and does not have an identification.

Insert screws on all bearing caps from (10) to (1).

Tightening torque 11 31 3AZ .

Fig 19: Right Intake Camshaft Bearing Cap Bolts Tightening/Loosening Sequence (N20)

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 11 7 110 on return spring.

Fig 20: Removing Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

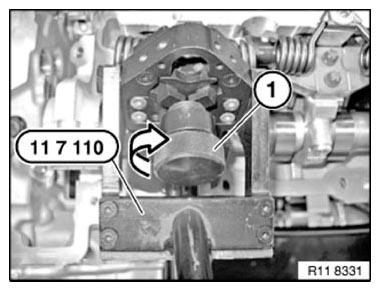

Clamp throttle return spring with knurled screw (1) in direction of arrow.

Fig 21: Turning Knurled Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Return spring (1) is positioned correctly when latching hooks surround return spring (1).

Fig 22: Identifying Return Spring

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Risk of injury in event of incorrect use.

IMPORTANT: Improper handling. Risk of damage.
Check return spring on intermediate lever to ensure correct installation position.

Press special tool 11 7 110 to stop in direction of arrow.

Fig 23: Pressing Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Install return spring (2) on gate.

IMPORTANT: Insert return spring (2) in intermediate lever (1) (see arrow).
Check that rocker arm (3) is in correct installation position.

Fig 24: Inserting Return Spring In Intermediate Lever And Checking Rocker Arm Installation Position

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Check that intermediate lever (1) is installed in correct position on eccentric shaft (2).

Fig 25: Identifying Intermediate Lever And Eccentric Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Observe thread on cylinder head. Risk of damage.

Tighten bolt (1).

Tightening torque 11 37 2AZ .

Fig 26: Releasing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Risk of injury in event of incorrect use.
Lever (1) is preloaded.

IMPORTANT: Improper handling. Risk of damage.

Secure lever (1).

Press back latching hook (2).

Fig 27: Releasing Return Spring Tension

Courtesy of BMW OF NORTH AMERICA, INC.

Return spring tension can now be released.

Check installation position of intermediate lever and return spring again , remove special tool 11 7 110 .

Retract oil spray nozzle (2) on actuator drive (3).

Engage bolt (1) and release back to 90°.

For exact positioning of the oil spray nozzle (2) audibly clip it in at the top.

Tightening torque 11 37 4AZ .

Fig 28: Unclipping Oil Spray Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install INTAKE CAMSHAFT ADJUSTER .

Adjust VALVE TIMING .

Fit CYLINDER HEAD COVER .

Install DME CONTROL UNIT .
