Removal & Installation

WARNING: This page is about a different car, the 2004 BMW 545i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove screws (1). Remove front panel center section (2) in direction of arrow and place aside. See Fig 1 . Remove remaining screws (1). Remove radiator cover (2) in direction of arrow. See Fig 2 . To install, reverse removal procedure.

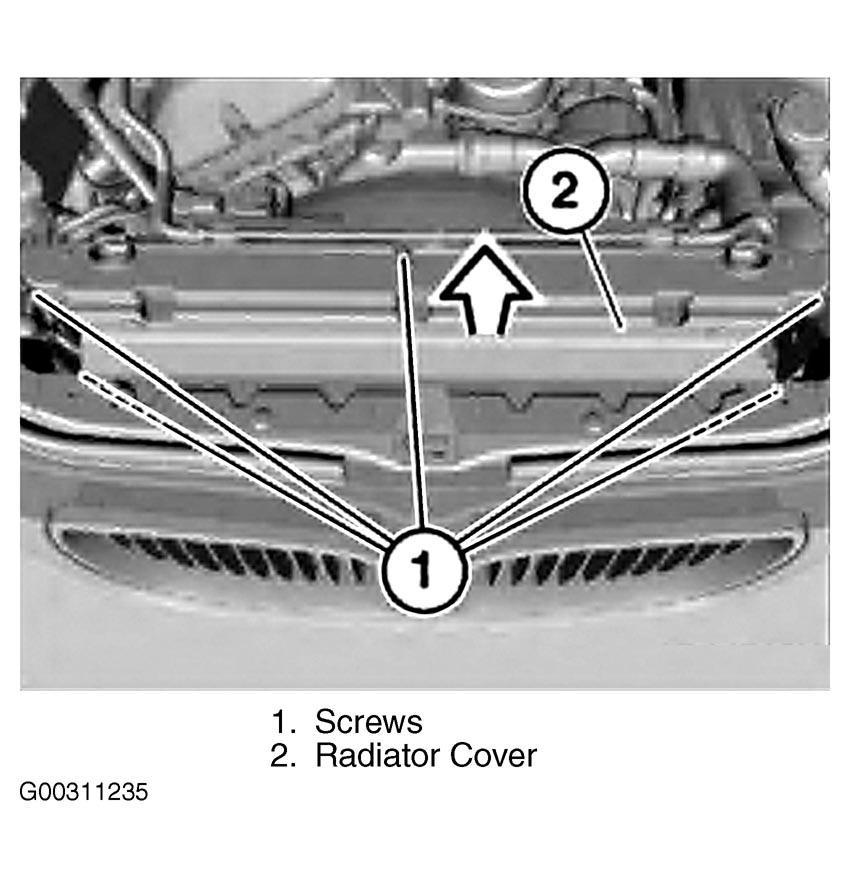

Fig 1: Removing Radiator Cover (6-Cylinder Shown; V8 Is Similar - 1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Removing Radiator Cover (6-Cylinder Shown; V8 Is Similar - 2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.
