51 14 110 Removing and installing/replacing rear model designation (on right splitdoor)

IMPORTANT: The INSTRUCTIONS FOR NUMBER/LETTER COMBINATION CEMENTING serve as the basis for these repair instructions and must be followed without fail.

Fitting dimensions (R55):

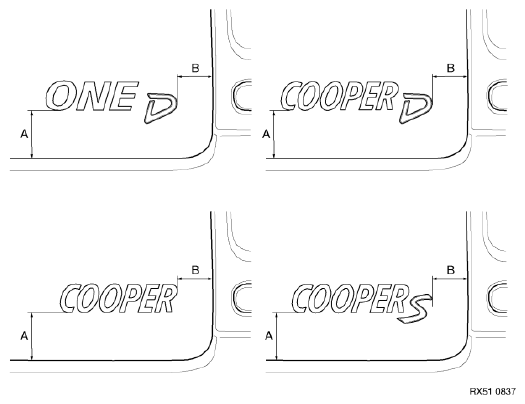

Fig 1: Identifying Model Designation Fitting Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

Mark position of model designation with adhesive tape using dimensions (A and B).

A = 51 mm

B = 40 mm

Pull liner* off model designation.

Position model designation horizontally on marking and stick on.

*Liner is the protective film on the new model designation
