616100 Measuring device

Minimum set: Mechanical tools

NOTE: (Angle measuring device) For measuring contact angle of wiper blades to window glass (angle when setting wiper arms)

Storage Location:

A54

SI number:

01 21 05 (220)

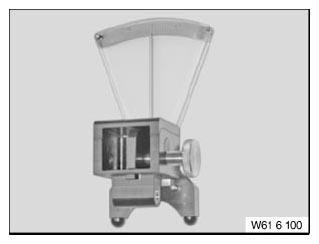

Fig 1: Identifying Measuring Device (616100)

Courtesy of BMW OF NORTH AMERICA, INC.
