002300 Assembly stand

NOTE: Assembly stand with universal flange for mounting engines from S85

SI number:

01 25 04 (155)

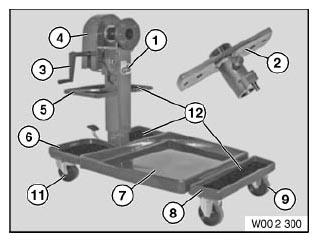

Fig 1: Identifying Assembly Stand (002300)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 0495188 Assembly stand

NOTE: available only as complete assembly stand 83 30 0 495 187.

2 = 0495189 Tool

NOTE: (Universal flange). Do not use any more. Technically locked. Replaced with a new flange with material number 83 30 2 299 563 . All flanges delivered until the end of 2011 will be replaced at no charge. From 2012, only the new flange will be supplied. Also applies to the complete engine mounting stand 00 2 300.

3 = 0495200 Crank

4 = 0495201 Cover

NOTE: (Protective hood)

5 = 0495202 oddments tray

NOTE: (Oddments tray for small parts)

6 = 0495203 Shaped element

NOTE: (Rear shaped pan)

7 = 0495204 Collection pan

NOTE: (Oil collection pan)

8 = 0495205 Shaped element

NOTE: (Front shaped pan)

9 = 0495206 Wheel

NOTE: (Front wheel (without stop))

10= 0495207 Wheel

NOTE: (Rear wheel (with stop))

11= 0495208 Mat

NOTE: (Checker mat set)

2 = 2299563 Adapter

NOTE: New adapter for the engine assembly stand. Replacement for 83 30 0 495 189 - 00 2 302.
