11 31 028 Removing and installing/replacing exhaust camshaft (N18)

Special tools required:

IMPORTANT: It is absolutely essential to follow an exact procedure for dismantling and installing the exhaust camshaft.

Necessary preliminary work:

IMPORTANT: Use special tool 32 2 100 to check the function of the adjusting unit by rotating the camshaft.

To release central bolts, always use special tool 11 7 440 of exhaust camshaft.

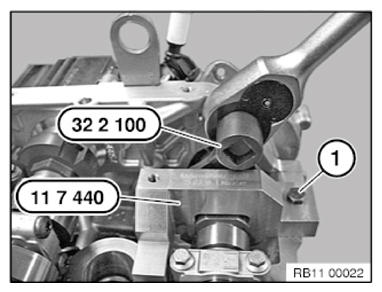

Position the special tool 11 7 440 at the mounting flats of the exhaust camshaft and fasten it with a screw (1).

Fig 1: Locating Sealing Compound Applying Area
G10000893Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Use special tool 11 7 440 to check the function of the adjusting unit by rotating the camshaft.

Position special tool 11 7 440 on intake and exhaust camshafts.

Secure special tool 11 7 440 on the cylinder head with screws (1).

Fig 2: Positioning Special Tool (11 7 440) On Intake And Exhaust Camshaft
G09925597Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (2).

Remove tensioning rail (1).

Fig 3: Identifying Tensioning Rail And Screws
G04789810Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque: 11 11 3AZ .

Fig 4: Identifying Screw
G04796335Courtesy of BMW OF NORTH AMERICA, INC.

Release central bolt (2).

Tightening torque: 11 36 2AZ .

Guide the VANOS unit in front of the timing chain toward the front.

Fig 5: Identifying VANOS Unit Central Bolts
G04796308Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Removed cylinder head:
When using special tool 11 9 000 , it will be necessary to remove the aluminum strip.
IMPORTANT: Risk of damage to spark plug bores.
Check special tool (1 screws 11 9 652 ) for damage.
Secure special tool 11 9 650 on cylinder head with special tool (1 screws 11 9 652 ) in spark plug holes.
Fig 6: Securing Special Tool (11 9 560) On Cylinder Head
G04796281Courtesy of BMW OF NORTH AMERICA, INC.

Release all screws on bearing caps (1 and 2).

Tightening torque: 11 12 8AZ .

Bearing cap (1) is a thrust bearing and has the number (0).

All bearing caps (2) are identified with numbers from (1 to 4).

Fig 7: Identifying Bearing Caps
G04789825Courtesy of BMW OF NORTH AMERICA, INC.

Exhaust camshaft is identified with identification (EX).

Insert the exhaust camshaft so that the designation (EX) can be read from above.

Fig 8: Identifying Designations For Exhaust (EI) And Intake (IN) Camshafts
G04796268Courtesy of BMW OF NORTH AMERICA, INC.

Position exhaust camshaft (1) so that cam of exhaust camshaft (2) points outward at an angle.

Installation note:

Lubricate all bearing positions with engine oil.

Fig 9: Identifying Camshaft Installation Position
G04796286Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Installation note:

Adjust VALVE TIMING .
