11 31 025 Removing and installing or replacing intake camshaft (N16)

Special tools required:

Necessary preliminary tasks:

Remove CYLINDER HEAD COVER .
Remove ADJUSTING UNIT for intake camshaft.
Remove INTERMEDIATE LEVER .
Remove EXHAUST CAMSHAFT .

IMPORTANT: The screws of the bearing bracket must not be opened.
Releasing the bearing bracket will result in damage to the cylinder head.

Fig 1: Identifying Bearing Bracket Screws STOP Label

Courtesy of BMW OF NORTH AMERICA, INC.

Bearing cap marked 5 is a thrust bearing.

Release screws of bearing caps (1 to 5).

Set all bearing caps down in special tool 11 4 481 in a neat and orderly fashion.

Remove camshaft (6).

Installation note:

Clean all bearing positions and lubricate with oil.

Fig 2: Identifying Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Check plain rectangular compression rings for damage.

Plastic plain rectangular compression ring:

Installation note:

The plastic plain rectangular compression rings are maintenance free and do not have to be replaced.

Insert plastic plain rectangular compression ring (1) into groove of intake camshaft (2) (see arrow).

Fig 3: Inserting Plastic Rectangular Compression Ring Into Exhaust Camshaft Groove

Courtesy of BMW OF NORTH AMERICA, INC.

Lightly oil plastic plain rectangular compression ring (1) and rotate in direction of arrow until plastic plain rectangular compression ring (1) is positioned on the intake camshaft.

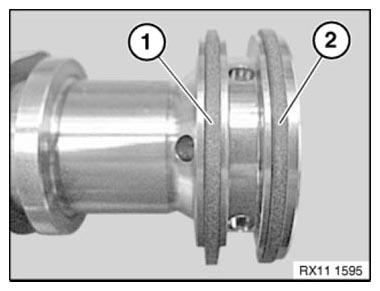

Check plastic plain rectangular compression ring (1 and 2) for freedom of movement.

Fig 4: Identifying Plastic Rectangular Compression Rings

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Both camshafts have different identifications.
Mixing up the two camshafts will result in damage .
EX Exhaust camshaft.
IN Intake camshaft

Fig 5: Identifying Designations For Exhaust (EI) And Intake (IN) Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

Insert camshaft (E) so that IN marking points upwards.

Position intake camshaft (E) so that cams point upwards at an angle.

Attach special tool 11 9 551 to mounting flats.

Make sure plain rectangular compression rings cable can move freely.

Fig 6: Identifying Intake Camshaft (E) Position

Courtesy of BMW OF NORTH AMERICA, INC.

All bearing caps are identified from 5 to 10.

Observe pairing numbers (1).

Fig 7: Identifying Bearing Caps Pairing Numbers

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten bearing caps from inside outwards.

Tightening torque: 11 12 7AZ .

Fig 8: Identifying Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust VALVE TIMING .

Assemble engine.
