41 00... FRAME ALIGNMENT CONTROL BODY DIMENSIONS (750Li)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 750i, 2008 BMW 750Li, 2007 BMW 750i, 2007 BMW 750Li, and 2006 BMW 750i. However, it is still accessible from the selected car via links, so may be relevant.

Dimensions in mm.

Measurement tolerances:

≤ 1000 mm ± 1 mm
≥ 1000 mm ± 2 mm

The control points shown serve to check the body and the straightening attachment.

The specified dimensions/measurements always refer to the centerpoint of the bore/screw.

Under Body View 1

Fig 1: Under Body Frame Alignment Control Dimensions And Measurement Points (750Li) (Under Body View 1)

Courtesy of BMW OF NORTH AMERICA, INC.

Under Body View 2

Fig 2: Under Body Frame Alignment Control Dimensions And Measurement Points (750Li) (Under Body View 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Top View, Front End

Fig 3: Engine Compartment Frame Alignment Control Dimensions And Measurement Points (750Li) (Top View, Front End)

Courtesy of BMW OF NORTH AMERICA, INC.

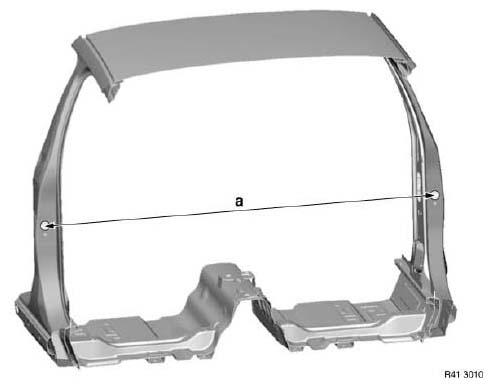

View, B-Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Measurement a=1657 mm between screw-on points of lock strikers.
