32 33 010 Removing and installing (replacing) sports steering wheel/steering wheel
NOTE:
Chassis/wheel alignment is not
necessary after the steering wheel has been removed and installed or replaced.
Necessary preliminary tasks:
- Remove airbag unit. See REMOVING AIRBAG UNIT or REMOVING AIRBAG UNIT (SPORT STEERING WHEEL) .
Move wheels/steering wheel into straight-ahead driving position.
Disconnect plug connection (1).
Release screw (2) and remove sport steering wheel.
Installation note:
Make sure connecting line(s) is/are correctly laid.
Tightening torque 32 33 1AZ .
Replacement:
- Modify SHIFT PADDLES
- Modify MULTIFUNCTION STEERING WHEEL SWITCH/SPOKE COVERS
- Modify BOTTOM SPORTS STEERING WHEEL COVER

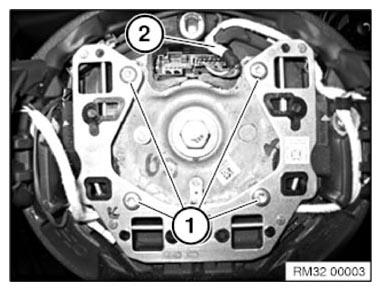

Release screws (1) and remove airbag unit holding plate.
Remove wiring harness (2) and reinstall in new steering wheel.
Tightening torque 32 33 2AZ .
