64 11 992 Removing and installing/replacing solar sensor

Special tools required:

• 00 9 327

Unclip and pull out solar sensor (1) with special tool 00 9 327 .

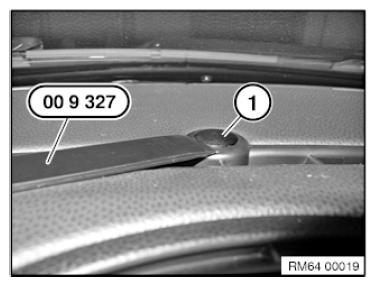

Fig 1: Unclipping Solar Sensor Using Special Tool 00 9 327

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect plug connection (2) Remove solar sensor (1).

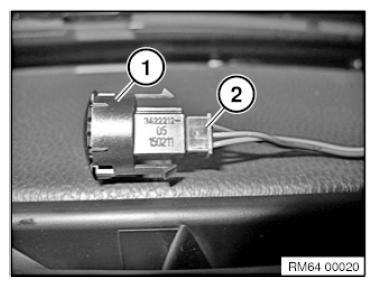

Fig 2: Identifying Solar Sensor Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
