51 12 090 Removing and installing/replacing ornamental grille in bumper trim (Cooper S/SD)

Necessary preliminary tasks:

• Remove rear BUMPER PANEL

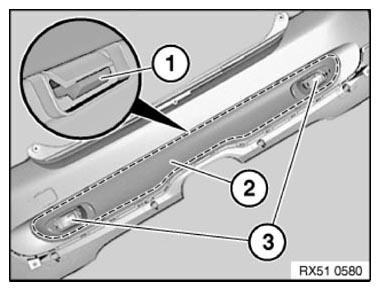

Release latch mechanisms (1) and remove ornamental grille (2).

Installation note:

Latch mechanisms (1) must not be damaged.

Replacement:

• Remove REAR FOG LIGHT (3)

Version after 08/2010:

• Remove FRAME FOR REAR FOG LIGHTS
  Fig 1: Identifying Frame For Rear Fog Lights

  Courtesy of BMW OF NORTH AMERICA, INC.
