51 16 060 Removing and installing or replacing interior rearview mirror

Disconnect negative lead from BATTERY .

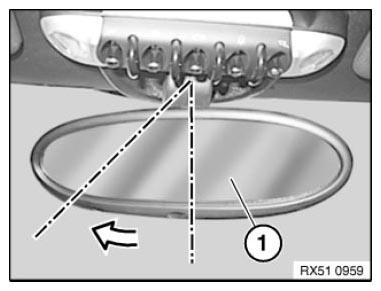

Move mirror (1) into position illustrated. Then turn carefully through 45° to left to disengage mirror base plate from mirror base.

NOTE: Pay attention to wiring harness on mirror base plate.

Fig 1: Moving Interior Rearview Mirror

G06917193

Courtesy of BMW OF NORTH AMERICA, INC.

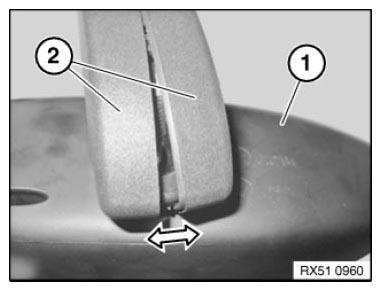

Turn mirror (1) through 180°, disengage mirror base plate cover shells (2) first at bottom... then at top, and remove.

Fig 2: Disconnecting Mirror Base Plate Cover Shells

G06917194

Courtesy of BMW OF NORTH AMERICA, INC.

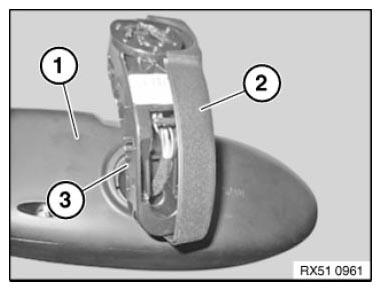

If necessary, reposition mirror (1) in relation to mirror base plate (3).

Installation:

Make sure mirror base plate cover shells (2) are correctly seated.

Fig 3: Identifying Mirror, Base Plate, And Cover Shells For Base Plate

G06917195

Courtesy of BMW OF NORTH AMERICA, INC.

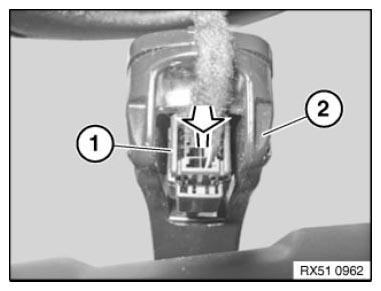

Pull plug connection (1) out of mirror base plate (2)...

Fig 4: Pulling Plug Connection Out Of Mirror Base Plate

G06917196

Courtesy of BMW OF NORTH AMERICA, INC.

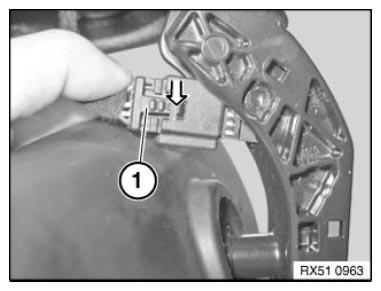

... and disconnect plug connections (1)

Fig 5: Disconnecting Plug Connections

G06917197

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace with version with remote control for central locking:

Initialize all transmitters (ignition keys), refer to vehicle owner's handbook.
