52 26 311 Removing and installing/replacing lock for left or right rear seat backrest

Necessary preliminary tasks:

• Remove BACKREST COVER

Release screws (1).

Tightening torque 52 26 01AZ .

Pull release unit (2) out of rear seat back.

Remove counter-support (3).

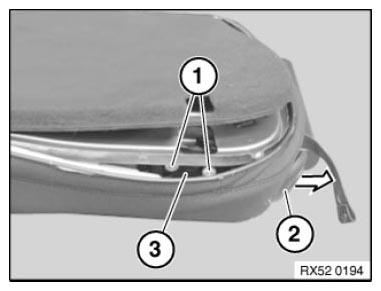

Fig 1: Removing Counter-Support

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure release unit is correctly seated in counter-support.

Fig 2: Identifying Release Unit

Courtesy of BMW OF NORTH AMERICA, INC.
