41 00... Gap dimensions, body

NOTE: Symmetry of the gaps between left and right sides of the vehicle has top priority.
The door gaps must not deviate between the front and rear gap by more than 1.0 mm.
Adjust headlight and tail light with constant all-round gap (visually).

Dimensions in mm

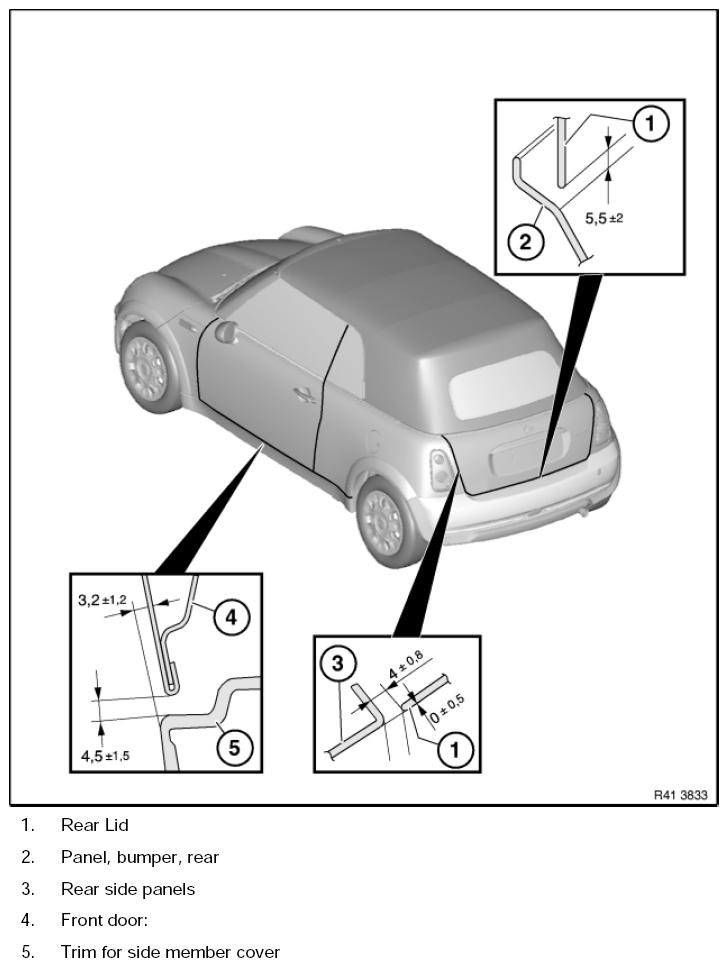

Fig 1: Identifying Body Gap Dimensions (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Identifying Body Gap Dimensions (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.
