63 12 007 Removing and installing/replacing left or right headlight (halogen headlight)

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Release screws (1). Tightening torque 63 12 1AZ .

Disconnect plug connection (2).

Version with headlight cleaning system:

Pull headlight forwards slightly and disconnect hose connection (3) from high-pressure nozzle (4).

Remove headlight.

Fig 1: Identifying High Pressure Nozzle, Hose Connection, Plug Connection, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Adjust body gap dimensions by means of adjusting screws (1)

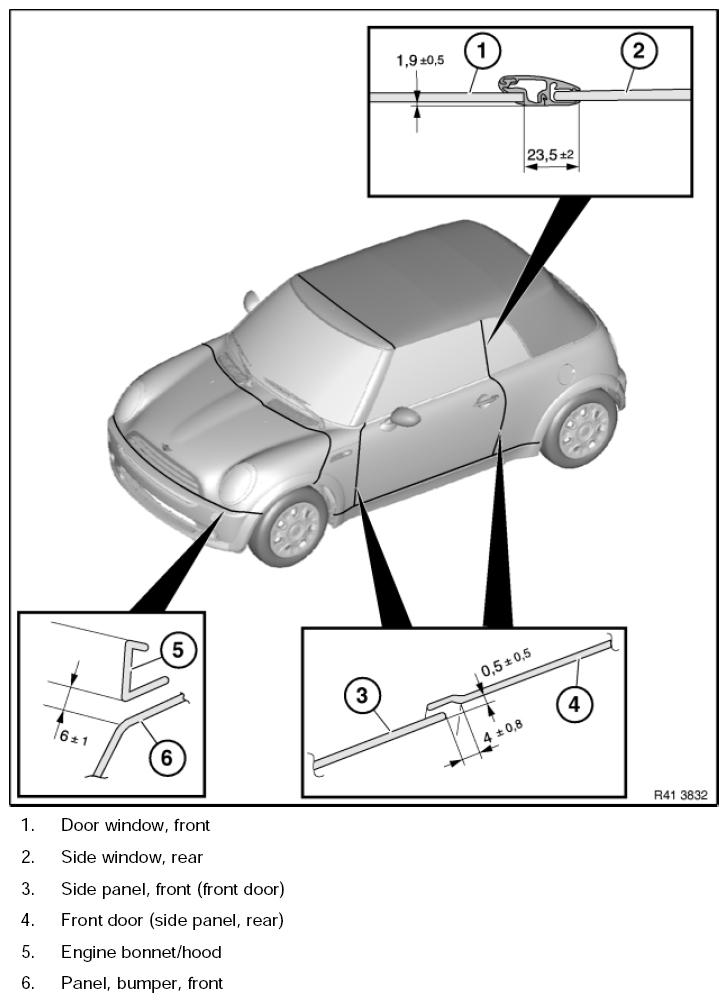

Fig 2: Body Gap Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Identifying Adjusting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
