51 45 076 Replacing carrier for instrument panel

Necessary preliminary tasks:

• Remove CARRIER FOR INSTRUMENT PANEL

Release screws (1).

Remove holder for instrument panel lower section.

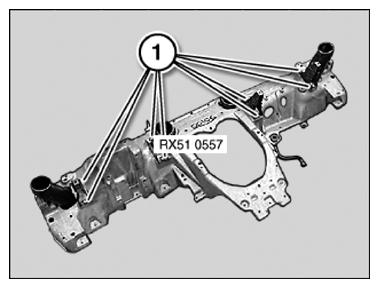

Fig 1: Identifying Screws Of Holder For Instrument Panel Lower Section

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Unclip air duct (2).

Disengage hose (3).

Fig 2: Identifying Screws Of Support For Dashboard

Courtesy of BMW OF NORTH AMERICA, INC.
