61 12 200 Replacing wiring harness in left or right front door

Necessary preliminary tasks:

Disconnect plug connection (1).

Unclip door wiring harness at points (2).

Installation note:

Make sure door wiring harness is correctly laid.

Fig 1: Identifying Wiring Harness Attachment Points And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unclip door wiring harness at points (2).

Pull in rubber grommets (3) in inside of door.

Installation note:

Make sure door wiring harness is correctly laid.

Fig 2: Identifying Plug Connection, Rubber Grommets, And Wiring Harness Attachment Points

Courtesy of BMW OF NORTH AMERICA, INC.

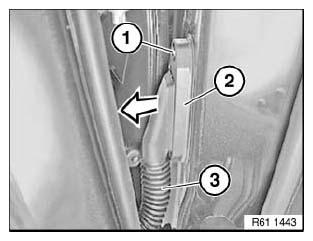

Release screw (1), fold door wiring harness connector on A-pillar (2) downwards slightly and remove.

Disconnect plug connection behind.

Pull rubber grommet (3) out of front door.

Feed out door wiring harness towards front to A-pillar.

Fig 3: Pulling Rubber Grommet Out Of Front Door
