41 34 060 Stripping operations - Replacing tail panel
NOTE:
Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.
- Remove complete exhaust system
- Remove heat shield for rear silencer
- Remove bumper trim
- Remove bumper carrier
- Remove luggage compartment floor trim panel
- Upper tail panel trim
- Partially detach rear lid seal
Disconnect connector (1).
Unfasten screws (2).
Remove lock (3).
Remove rear ventilation (4).

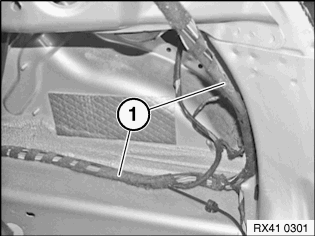

Release wiring harness (1) from tail panel, left and right wheel arches.

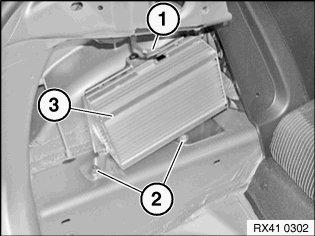

Disconnect connector (1).
Release nuts (2).
Remove amplifier (3).
