41 34 037 Stripping-down operations - Replacing tail panel outer section (partial replacement)

NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.

The following list basically represents the removal sequence.

Disconnect connector (1).

Release screws (2) and remove lock (3).

Tightening torque 51 24 1AZ .

Remove rear ventilation (4).

Release wiring harness from tail panel and luggage compartment floor.

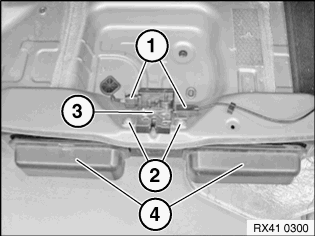

Fig 1: Identifying Connector, Screws, Lock, And Rear Ventilation

Courtesy of BMW OF NORTH AMERICA, INC.
