41 00... Overview of adhesive cartridge guns

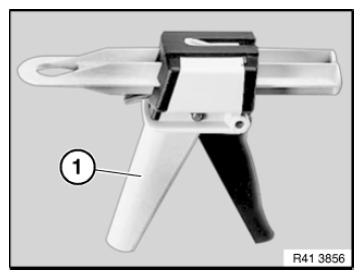

Adhesive gun 83 19 2 149 522

Obtainable via BMW Electronic Parts Catalogue.

Usable for adhesives K4, K5a.

Including insert 1:1 and 2:1.

Fig 1: Identifying Adhesive Cartridge Gun (83 19 2 149 522)

Courtesy of BMW OF NORTH AMERICA, INC.

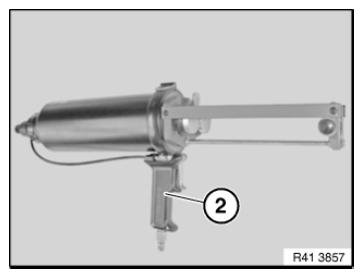

Adhesive gun 81 49 0 443 166

Obtainable via BMW Workshop Equipment Catalogue

Usable for adhesive K3.

Fig 2: Identifying Adhesive Cartridge Gun (81 49 0 443 166)

Courtesy of BMW OF NORTH AMERICA, INC.

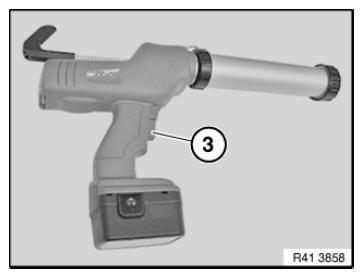

Adhesive cartridge gun 81 49 2 213 059

Obtainable via BMW Workshop Equipment Catalogue

Usable for adhesives K1, K2, K5b, sealant D1, window glass adhesive and all 310 ml Euro cartridges.

Fig 3: Identifying Adhesive Cartridge Gun (81 49 2 213 059)

Courtesy of BMW OF NORTH AMERICA, INC.

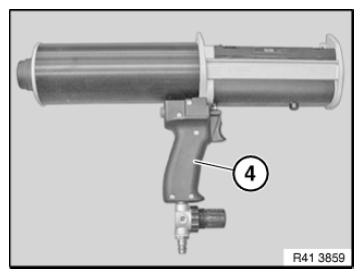

Adhesive cartridge gun 83 30 0 494 836

Obtainable via BMW Workshop Equipment Catalogue

Usable for structural foam HS2.

NOTE: Special tool number 41 3 010

Fig 4: Identifying Adhesive Cartridge Gun (83 30 0 494 836)

Courtesy of BMW OF NORTH AMERICA, INC.
