51 12 090 Removing And Installing/Replacing Ornamental Grille In Bumper Trim (Cooper S/SD)

Necessary preliminary tasks:

• Remove rear bumper panel (see REAR BUMPER PANEL (UNTIL 08/2010)  -or- REAR BUMPER PANEL (FROM 08/2010) )

Release latch mechanisms (1) and remove ornamental grille (2).

Installation note:

Latch mechanisms (1) must not be damaged.

Replacement:

• Remove REAR FOG LIGHTS (3)

Version after 08/2010:

• Remove FRAME FOR REAR FOG LIGHTS

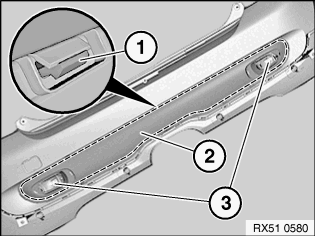

Fig 1: Identifying Ornamental Grille And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.
