51 24 065 Removing And Installing / Replacing BOWDEN Cable For Manual Rear Lid Unlocking

Necessary preliminary tasks:

• Remove side trim panel. See REAR SIDE TRIM PANEL (COOPER/COOPER S)  or REAR SIDE TRIM PANEL (JCW GP) .
• Detach BOWDEN CABLE FOR MANUAL REAR LID LOCK UNLOCKING .

Removing Bowden cable for manual rear lid unlocking:

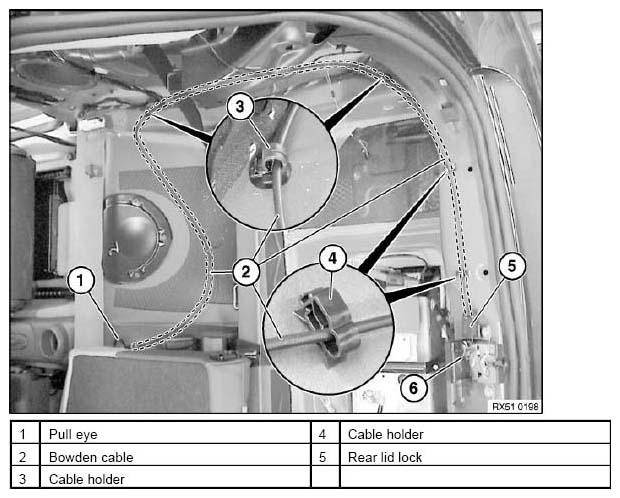

Fig 1: Identifying Pull Eye, Cable Holder, Bowden Cable And Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Feed Bowden cable (2) out of cable holders (3 and 4).

Unclip Bowden cable (2) from pull eye (1).

Lever grommet (3) out of holder (4) and feed out.

Fig 2: Removing Grommet From Holder

Courtesy of BMW OF NORTH AMERICA, INC.
