Installing side wall

Clean all  bonding surfaces (1) on new part and on vehicle with cleaning agent R1.

Apply adhesive K5b to bonding surfaces (1).

Fig 1: Identifying Bonding Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Apply sealing compound to cavity acoustic baffle (1). See INSTALLING A CAVITY ACOUSTIC BAFFLE (EXPANDED)  / INSTALLING A CAVITY SEALING (NOT EXPANDED) .

Fig 2: Identifying Cavity Acoustic Baffle

Courtesy of BMW OF NORTH AMERICA, INC.

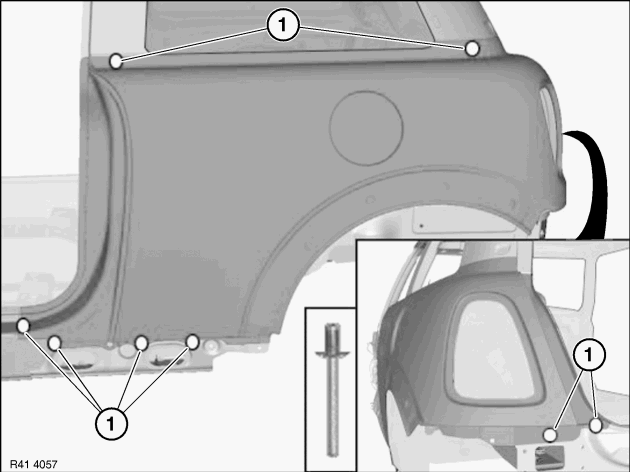

Mount side panel and rivet with blind rivets (1).

Fig 3: Identifying Blind Rivet Areas

Courtesy of BMW OF NORTH AMERICA, INC.

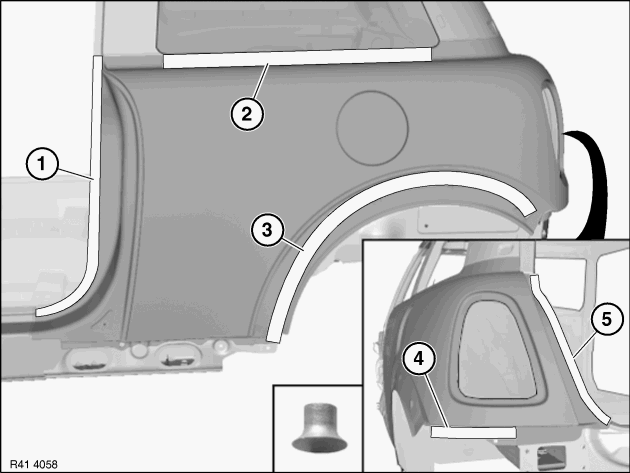

In areas (1) to (5) rivet side panel with punch rivets.

Refer to table below for number.

Fig 4: Identifying Punch Rivet Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Fit an EMC SCREW  after adhesive has hardened in area (1).

Fig 5: Identifying Adhesive Hardened Area

Courtesy of BMW OF NORTH AMERICA, INC.
