Installing rear trim panel

Clean all  bonding surfaces on new part and on vehicle with cleaning agent R1.

Apply K5a adhesive to bonding surfaces (1).

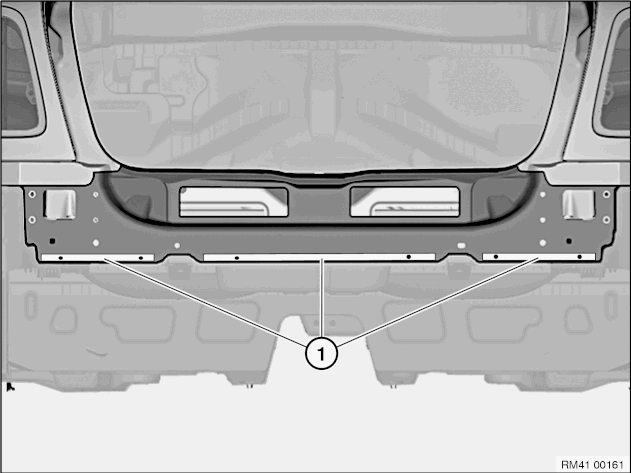

Fig 1: Identifying Bonding Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Mount rear trim panel and rivet with blind rivets N3 (1).

Fig 2: Identifying Rear Trim Panel And Rivet With Blind Rivets N3

Courtesy of BMW OF NORTH AMERICA, INC.

In areas (1) to (4) rivet rear trim panel with punch rivets N4.

Refer to table below for number.

Mount carrier for bumper trim to secure rear trim panel. (Remove carrier for bumper trim again after adhesive has dried).

Fig 3: Identifying Rivet Rear Trim Panel With Punch Rivets N4

Courtesy of BMW OF NORTH AMERICA, INC.

After hardening of the adhesive install 6 EMC SCREWS  in the areas shown.

Graphic similar.

Fig 4: Identifying Areas For Adhesive And EMC Screws
