84 10 050 Removing and installing (replacing) USB hub

IMPORTANT: Read and comply with NOTES ON PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Release screws (1) and (2).

Remove cover (3).

Fig 1: Identifying Screws And Cover
G06918252Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (2) and (3) and disconnect.

Release screws (3).

Remove USB hub (4).

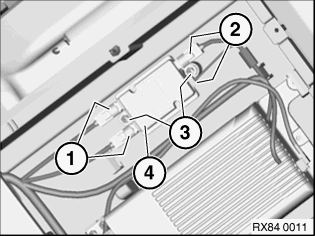

Fig 2: Identifying USB Hub, Connectors, And Screws
G00532975Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out vehicle PROGRAMMING/ENCODING .
