51 11 183 Removing and installing/replacing ornamental grille for bumper trim (side)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

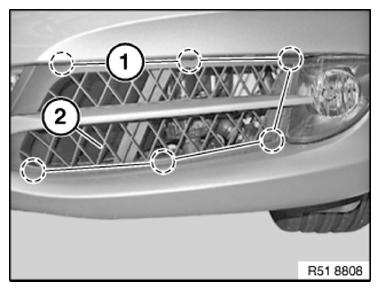

Unclip retaining lugs (1) and remove ornamental grille (2) towards front.

Installation note:

Retaining lugs (1) must not be damaged .

Fig 1: Identifying Retaining Lugs And Ornamental Grille

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

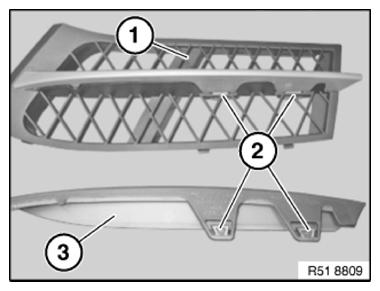

Modify trim (3) of ornamental grille (1).

Installation note:

Retaining lugs (2) must not be damaged .

Fig 2: Identifying Ornamental Grille Trim And Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
