31...... Layout of spring strut shock absorber

WARNING: This page is about a different variant/trim than selected.

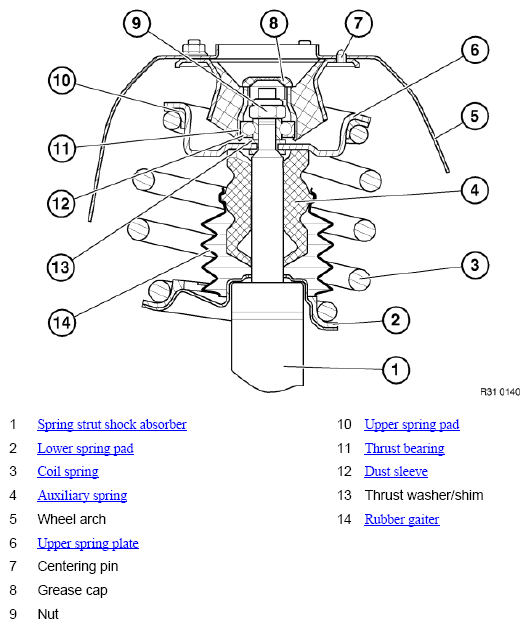

Fig 1: Identifying Spring Strut Shock Absorber Components
G05528830Courtesy of BMW OF NORTH AMERICA, INC.
