84 10 050 Removing and installing/replacing USB hub (from version 09/2009)
WARNING: This page is about a different variant/trim than selected.
IMPORTANT:
Read and comply with NOTES ON PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)
.
NOTE:
Comply with notes and instructions on HANDLING OPTICAL FIBERS
.
Necessary preliminary tasks:
- Remove LEFT FRONT SEAT .
Release screws (1) and (2).
Remove cover (3).

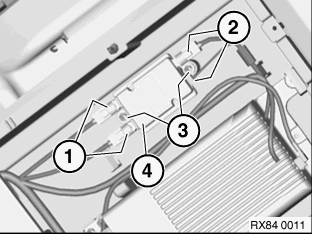

Unlock plug connections (1) and (2) and disconnect.
Release screws (3).
Remove USB hub (4).
Replacement: Carry out VEHICLE PROGRAMMING/ENCODING .
