64 22 161 Removing and installing or replacing middle fresh-air grille
WARNING: This page is about a different variant/trim than selected.
Necessary preliminary tasks: Remove cover for instruments
NOTE:
Removal of the center left fresh air grille is described.

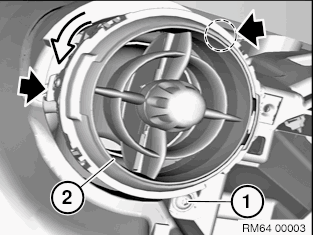

Release screw (1). Disengage fresh air grille (2) in direction of arrow and take off.
Installation note: The retaining lugs must be correctly locked at the marked positions.
