64 11 X02 Removing and installing/replacing central kinematics
WARNING: This page is about a different variant/trim than selected.
Necessary preliminary tasks:
Remove heater

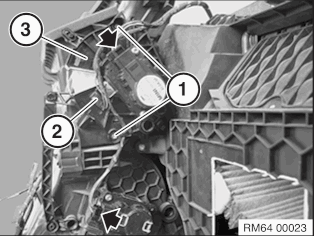

Unlock and disconnect plug connections at marked points. Disengage microswitch (2). Release screws (1). Remove central kinematics (3).
