64 11 225 Replacing controller for heating and A/C system blower

Release screws (1) and feed out cover (2) towards bottom.

Fig 1: Identifying Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

There are two controller versions for the heating and air conditioning system.

Version A.

Disconnect plug connection (1).

Turn controller (2) to left slightly and remove.

Fig 2: Removing Controller

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Marking (1) on controller must match up with marking (2) on heater.

Fig 3: Identifying Marking On Controller And Heater

Courtesy of BMW OF NORTH AMERICA, INC.

Version B.

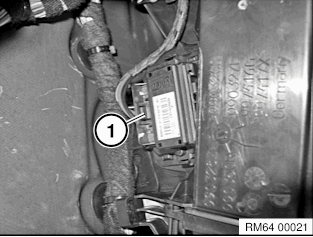

Unfasten plug connection (1) and disconnect.

Fig 4: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

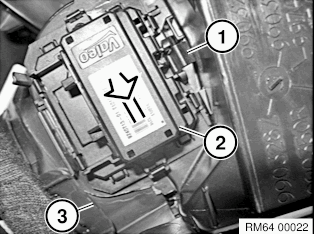

Release lock (1). Slide controller (2) upwards slightly and pull out of heating and air-conditioning unit (3).

Fig 5: Removing Heating And Air Conditioning Unit

Courtesy of BMW OF NORTH AMERICA, INC.
