64 11 221 Replacing resistor for heating and A/C unit blower (IHR/IHKR)

Release screws (1) and feed out cover (2) towards bottom.

Fig 1: Identifying Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Version 1

Disconnect plug connection (1).

Turn resistor (2) to left slightly and remove.

Fig 2: Identifying Plug Connection And Resistor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Marking (1) on resistor must match up with marking (2) on heater.

Fig 3: Identifying Marking On Resistor And Heater

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

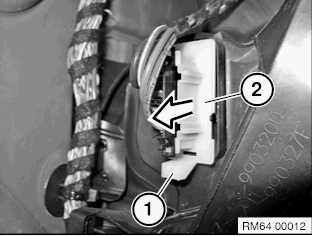

Unlock retaining lug (1). Pull the resistor (2) in direction of arrow out of the guide.

Fig 4: Pulling Resistor In Direction Of Arrow Out Of Guide

Courtesy of BMW OF NORTH AMERICA, INC.

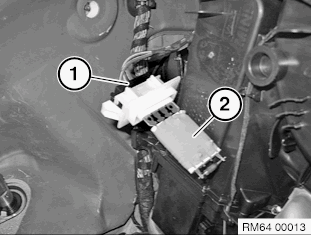

Unfasten plug connection (1) and disconnect. Take off resistor (2).

Fig 5: Removing Resistor

Courtesy of BMW OF NORTH AMERICA, INC.
