64 11 212 Removing and installing blower for heating and A/C unit (IHKR/IHKA)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Remove trim for instrument panel at bottom left (driver's side). See INSTRUMENT CLUSTER TRIM .

Release screws (1) and remove cover (2).

Fig 1: Identifying Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

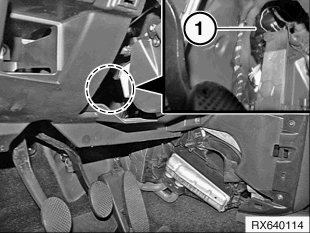

NOTE: Left hand drive vehicles: Blower (1) is located above accelerator pedal on bulkhead.

Fig 2: Identifying Blower Location

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, illustration shows instrument panel removed.

Disconnect plug connection (1).

Release screws (2) and feed out blower (3).

Fig 3: Identifying Plug Connection And Blower Screws

Courtesy of BMW OF NORTH AMERICA, INC.
