52 26 303 Removing and installing/replacing actuator for rear seat backrest

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

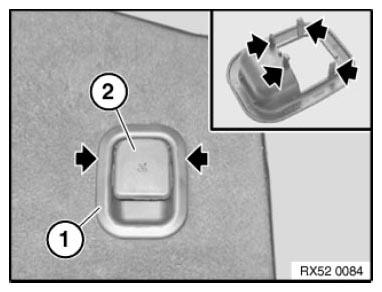

Unclip trim (1) and feed out from release lever (2).

Installation:

Retaining lugs must not be damaged.

If necessary, replace faulty trim (1).

Fig 1: Identifying Trim And Release Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Feed Bowden cable (2) out of grip recess plate (1).

Fig 2: Identifying Bowden Cable And Grip Recess Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Press in detent lugs and remove grip recess plate (1).

Fig 3: Identifying Grip Recess Plate

Courtesy of BMW OF NORTH AMERICA, INC.
