51 24 305 Removing and installing/replacing gas strut for left or right splitdoor

WARNING: This page is about a different variant/trim than selected.

NOTE: Make a written record of the alignment of the gas pressure support(s) before removing.

Slide stop spring (1) to end of gas strut (2) and lever out gas strut (2) from holder.

Repeat procedure at other end of gas strut (2) and remove gas strut (2).

Fig 1: Identifying Stop Spring And Gas Strut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

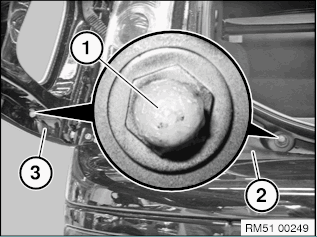

Prior to installing the gas pressure spring, check the secure seat of ball stud (1) on body (2) and split door (3).

Tightening torque 51 24 14AZ

Fig 2: Identifying Ball Studs

Courtesy of BMW OF NORTH AMERICA, INC.
