51 45 370 Removing and installing (replacing) left decorative strip on instrument panel

Special tools required:

• 00 9 317

Undo and remove screws (1) on the back of the rev counter (2).

Pull the rev counter (2) rearwards.

Fig 1: Identifying Screws And Rev Counter

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully unclip decorative strip (1) with special tool 00 9 317 at retaining points (2) and remove.

(Illustration shows rev counter removed for greater clarity.)

Installation note:

Make sure pins are correctly seated on trim strip (1).

If necessary, replace defective clips.

Fig 2: Identifying Decorative Strip And Retaining Points

Courtesy of BMW OF NORTH AMERICA, INC.

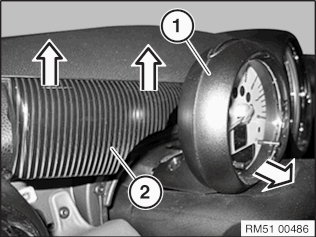

Pull the rev counter (1) rearwards.

Remove decorative strip (2) upwards.

Fig 3: Removing Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.
