51 47... Removing and installing/replacing luggage compartment grille (Clubvan)
WARNING: This page is about a different variant/trim than selected.

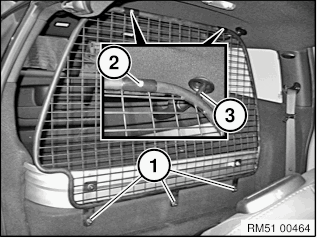

Remove protective caps (1) and loosen screws underneath.
Tightening torque: 16 Nm
Slacken screws (2).
Tightening torque: 6 Nm
NOTE:
Both fixing rods (3) must be pushed slightly inwards for the grille to be detached.
Detach grille and remove through right-hand doorway.
