84 10 050 Removing and installing (replacing) USB hub (until 09/2009)

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Release screws (1) and (2).

Remove cover (3).

Fig 1: Identifying Screws And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

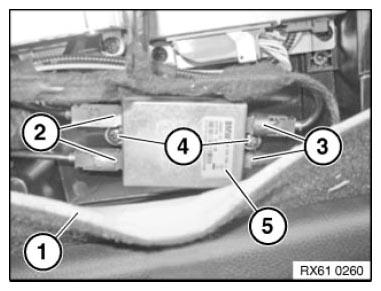

Raise carpet (1).

Unlock plug connections (2) and (3) and disconnect.

Release screws (4).

Remove USB hub (5).

Fig 2: Identifying Carpet, Plug Connections, Screws And USB Hub

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
