Necessary preliminary work

WARNING: This page is about a different variant/trim than selected.

If necessary, cut through warranty seal.

Raise lid (1) with special tool 64 1 020 all round and remove from Car Communication Computer (2).

Fig 1: Removing Lid From Car Communication Computer Using Special Tool (64 1 020)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Feed out bridge (2).

Installation note:

Use special tool 00 9 450 to tighten down screws.

Fig 2: Identifying Bridge With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Cut through labels at marked points (1).

Release screws (2) and remove cover (3).

Installation note:

Use special tool 00 9 450 to tighten down screws.

Fig 3: Identifying Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) with magnetic screwdriver.

Installation note:

Tab (2) of DVD drive must be above tab (3) of Car Communication Computer.

Fig 4: Identifying DVD Drive Tab And Car Communication Computer Tab

Courtesy of BMW OF NORTH AMERICA, INC.

Turn Car Communication Computer through 180° and carefully feed out DVD drive.

Carefully disconnect plug connections (1, 2).

Remove DVD drive (3).

Installation note:

Ensure correct cable routing.

Fig 5: Identifying Plug Connections And DVD Drive

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: There are two versions of the plug connection (2) shown:

Previous version (1): ribbon cable is connected horizontally

Current version (2): ribbon cable is connected vertically

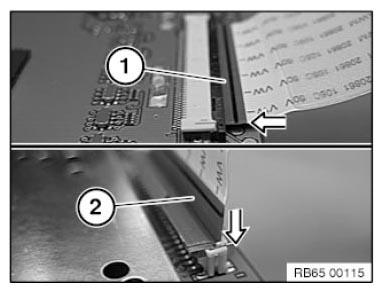

Fig 6: Versions Of Plug Connection - Ribbon Cable Is Connected Horizontally And Vertically
