72 11 097 Removing and installing/replacing rear center lower strap

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Installation:

Powerlok screws (Duo Taptite) must be replaced and must not be reused.

Powerlok screws (Duo Taptite) are mechanical thread fasteners with trilobular threads.

Lift off cover.

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock PLUG CONNECTIONS (1) and disconnect.

Release screw (2).

Installation:

Replace screw.

Tightening torque 72 11 08AZ .

Remove lower belt fitting.

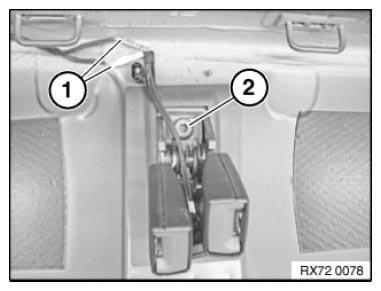

Fig 2: Identifying Plug Connections And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
